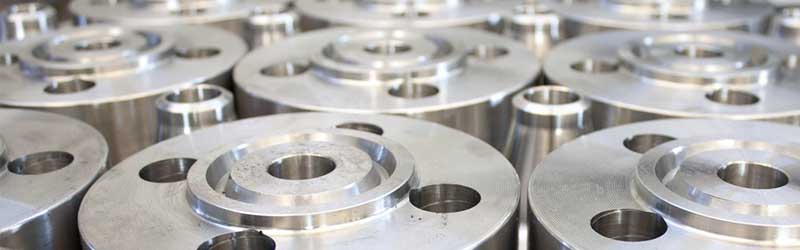

Flanges
Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers.
|
Flanges |
Specification |
|
Types Of Flanges |
Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| Standards | ANSI, JIS, DIN, EN1092-1, UNI, BS4504, SABS1123, AS2129, GOST-12820 |
| Dimension | ANSI B 16.5, ANSI 16.47, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44 & As Per Custom Drawing. |
| Material | ASTM A105, ASME A105 ASTM A266 GR.1, GR.2, GR.3, GR.4 ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2 ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 |
| Class | 150#, 300#, 600#, 900#, 1500# & 2500# |
| Size | 1/2” NB TO 48” NB. |
| Wall Thicknesss | SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS. |
| Form | Flanges – SWRF |
|
Type |
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Grade | |
| Stainless Steel | 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L . |
| Duplex Steel | UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM A105 / A350 , ASTM A694 / A516/ A266/ IS2062 - LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 , A/SA 516 GR. 60/70 , IS 2062 GR.A/B , ASTM A266 GR.1, GR.2, GR.3, GR.4, etc |
| Alloys Steel | ASTM A182 / ASME SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91 / F92 |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
