Channels

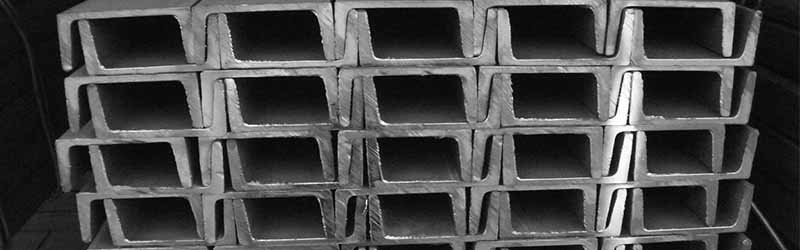

Arham Stainless is a leading supplier of wide range of Stainless Steel Channels. Stainless steel channel is shaped using a vertical web with top and bottom flanges at a 90 degree angle to the web and inside radius corners to increase the channel’s strength. It can be extruded, hot rolled or laser-fused. It is used for applications that require the high strength, corrosion-resistance, toughness, and easy sanitizing properties of stainless steel. These include raceways, braces, supports, and frames for machinery, equipment and housings in corrosive environments.


♦  Channel Sizes  ♦

Products

Size Range

Specifications

Supply Conditions

Tolerance

SS Channels

50.80 x 25.40 x 4.76 mm
50.80 x 25.40 x 6.35 mm
75 x 40 x 4.7 x 6.9 mm
76.20 x 38.10 x 6.35 mm
80 x 40 x 6 mm
80 x 45 x 6 x 8 mm
100 x 50 x 6 x 8.5 mm
101.60 x 40.13 x 4.57 mm
101.60 x 43.69 x 7.93 mm
101.60 x 44.45 x 6.35 mm
130 x 65 x 6 x 6 mm
152.40 x 48.77 x 5.08 mm

EN, DIN, ASTM, AISI, ASME, JIS, NACE

Hot Rolled Annealed and Pickled

ASTM A484, EN 10279
